Part Number: NEX-730-LED/R / Vendor ID Number: 104 / Custom:

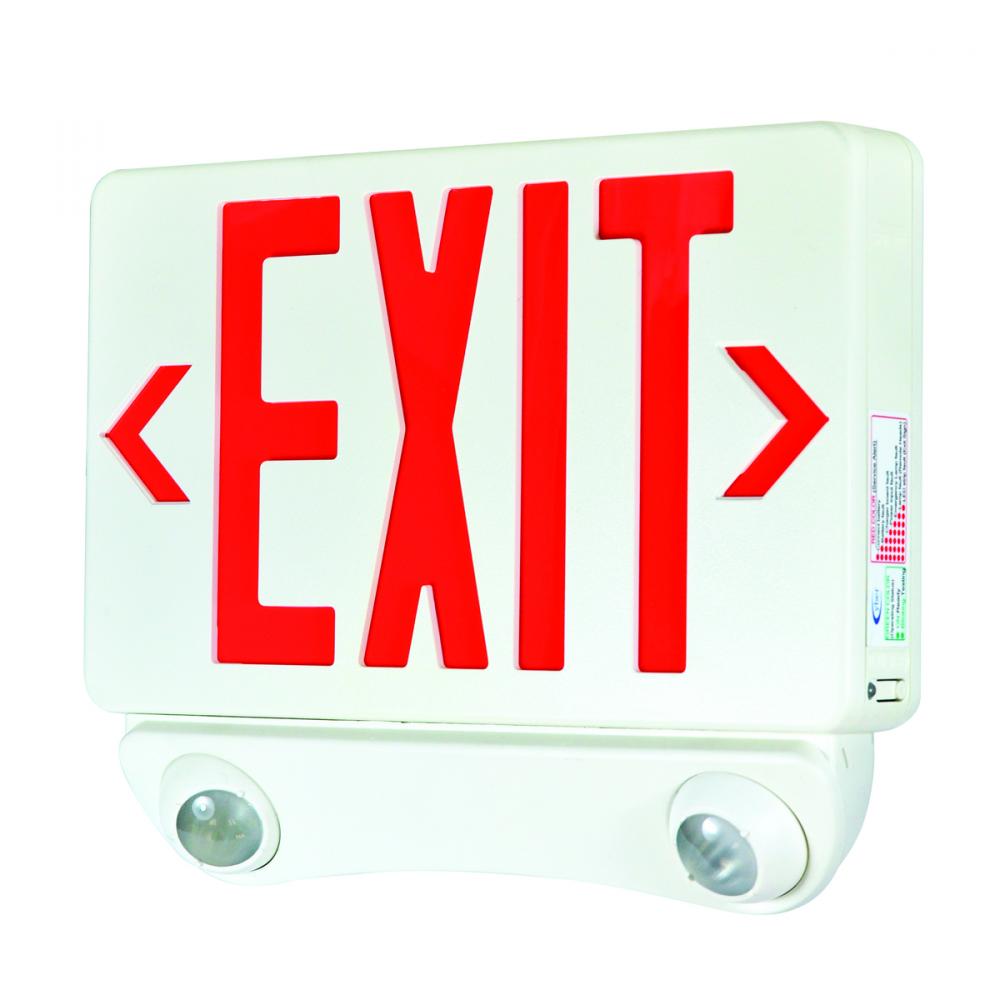

LED Exit and Emergency Combination with Adjustable Heads, Red Letters / White Housing

LED Exit and Emergency Combination with Adjustable Heads, Red Letters / White Housing
by Nora

86
31
Pack Of: 1
174 In Stock
Qty
Product Specification
Dimensions
Height: 7.25"
Width: 2.13"
Finish
White
Product Overview
LED exit sign with 6" red letters and white housing; dual emergency fixture features a ball & socket for full adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.
Input Voltage: 120/277VAC
Wattage: 2.7
Lumens / Wattage Per Head: (2) 40lm / 0.6W
CCT: 4500K
Battery: 4.8V Replaceable 1.0Ah Ni-Cad battery operates integral heads and exit LED sources. 90 minute emergency operation Internal solid state charging circuit
Emergency: Two adjustable Balls & socket with round heads holding self-protected, covered LEDs; Emergency heads can be mounted on top or bottom of exit sign
Testing: High-charge/ready operation indicator light; Test button Isolated surge/short circuit protection
Finish: White
Face: Single or dual configuration. Optional solid face panel is included.
Mounting: Wall or side mount. All mounting hardware included.
Listing: cULus Listed for Damp Locations, UL 924, OSHA, NFPA 101
Product Availability
    Item appears to be in stock and ready to ship
Finish:
Specific Products:
Additional Information
2.75
Info & Guides
Technical Details
Details
Category:
Utility
Subcategory:
Exit Signs
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Product Line:
5010
Est. Shipping Wt.:
4
Length:
11.75
Lumens / Light Output:
80lm
Ship Carton Height:
7.125
Ship Carton Length:
12
Ship Carton Width:
2.375
Weight:
2.6
Battery Quantity:
1
Battery Type:
Nickel- Cadmium
CCT:
4500K
Contains Battery:
Y
Country of Origin:
CHN
DLC Listed:
No
Master Box H:
16
Master Box L:
16
Master Box Qty:
12
Master Box W:
13
Master Box Wt.:
35
Product Family:
EXIT
Safety Listing:
UL 924
Wattage:
2.7W
Manufactured By:
Nora
